Stainless Steel Gearboxes
304/316 stainless steel bevel gearboxes designed for demanding washdown, hygienic and corrosive environments.
IP67/IP69K Protection | Food-Grade Lubrication | OEM Solutions
SIJIE INDUSTRIAL

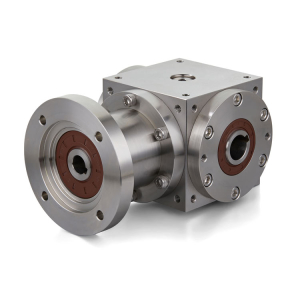

SSJV090 Compact Stainless Steel Bevel Gearbox
Compact Right-Angle Solution for Space-Limited Applications
The SSJV090 is a compact stainless steel bevel gearbox designed for applications requiring efficient installation and reliable right-angle power transmission. Its compact structure provides flexible mounting options for conveyors, packaging equipment and hygienic automation systems.
Key Advantages
Compact Right-angle Design Flexible Motor Compatibility
Low Backlash Performance (8–10 arcmin) Quiet Operation (≤65 dB)
SIJIE INDUSTRIAL

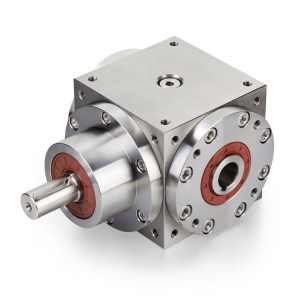

SSJV110 Stainless Steel Bevel Gearbox
Balanced Performance for Medium-Duty Applications
The SSJV110 stainless steel bevel gearbox delivers an excellent balance of torque capacity, efficiency and installation flexibility. Designed for continuous-duty operation, it provides reliable performance for food processing equipment, conveyors and industrial automation systems.
Key Advantages
Medium Torque Capacity High Transmission Efficiency
Hygienic Stainless Steel Construction Multiple Mounting Options
SIJIE INDUSTRIAL

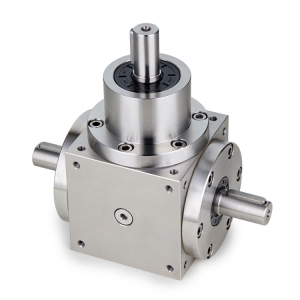

SSJV140 Heavy-Duty Stainless Steel Bevel Gearbox
High Torque Solution for Demanding Industrial Applications
The SSJV140 is designed for heavy-duty applications requiring higher torque output, robust construction and long-term reliability. With precision bevel gearing and stainless steel housing, it delivers stable performance in demanding production environments.
Key Advantages：
High Torque Output Heavy-Duty Construction
Washdown Resistant Design Continuous Operation Capability
Stainless Steel Bevel Gearbox Specifications
| Gearbox Model | SSJV-090( 18mm Shafts Diameter) | SSJV-110( 22mm Shafts Diameter) | SSJV-140( 32mm Shafts Diameter) |
| Max. Input Speed ( rpm ) | 2000 | 2000 | 2000 |
| Gear Ratio | 1:1, 2:1, 3:1, 4:1, 5:1 | 1:1, 2:1, 3:1, 4:1, 5:1 | 1:1, 2:1, 3:1, 4:1, 5:1 |
| Max. Radial load ( N ) | 1450 | 2100 | 2700 |
| Max. Axial force ( N ) | 725 | 1050 | 1350 |
| Rated life ( H ) | >20000 hours at permissible input speed and power | >20000 hours at permissible input speed and power | >20000 hours at permissible input speed and power |
| Operating Temperature Range ( ℃ ) | -10℃ to +50℃ | -10℃ to +50℃ | -10℃ to +50℃ |
| Sound Level ( dB ) | ≤65 | ≤65 | ≤65 |
| Mounting POS, Lubrication | Horizontal/NSF-H1 Food-grade | Horizontal/NSF-H1 Food-grade | Horizontal/NSF-H1 Food-grade |
| Direction of rotation | CW/CCW | CW/CCW | CW/CCW |
| Protection class | IP67/IP69K | IP67/IP69K | IP67/IP69K |
| Efficiency ( % ) | 95-98 | 95-98 | 95-98 |
| No-load running torque ( N.m ) | 0.6 | 1.2 | 1.9 |
| Warranty | 13 months after shipment | 13 months after shipment | 13 months after shipment |
Stainless Steel Bevel Gearbox Applications
SIJIE stainless steel bevel gearboxes are widely used in food processing machinery, beverage production lines, pharmaceutical equipment, packaging systems and other applications requiring corrosion resistance, hygienic design and reliable washdown performance.
SIJIE
Frequently Asked Questions
Find answers to common questions about stainless steel gearboxes, including applications, protection ratings, selection and OEM customization options.
Q1: What makes stainless steel gearboxes suitable for hygienic and washdown applications?
Stainless steel gearboxes are designed for applications requiring corrosion resistance, easy cleaning and reliable continuous operation in demanding environments.
SIJIE stainless steel gearboxes feature corrosion-resistant stainless steel housings, hygienic surface designs, IP67/IP69K protection options and food-grade lubrication solutions. They are suitable for food processing, beverage, pharmaceutical and other industries exposed to moisture, frequent cleaning cycles and washdown conditions.
Q2: What is the difference between AISI 304 and AISI 316 stainless steel gearboxes?
AISI 304 stainless steel provides excellent corrosion resistance for general industrial applications, while AISI 316 stainless steel offers enhanced resistance against chemicals, salt water and more aggressive corrosive environments.
SIJIE stainless steel gearboxes can be manufactured with suitable stainless steel materials according to application requirements, ensuring reliable performance in both standard and demanding operating conditions.
Q3: Are stainless steel bevel gearboxes suitable for food, beverage and pharmaceutical applications?
Yes. Stainless steel bevel gearboxes are widely used in food, beverage and pharmaceutical equipment where hygiene, corrosion resistance and reliable power transmission are essential.
SIJIE stainless steel bevel gearboxes feature smooth stainless steel housings, precision spiral bevel gears and food-grade lubrication options to provide stable operation in demanding production environments.
Q4: What protection ratings are available for stainless steel gearboxes?
SIJIE stainless steel gearboxes are available with IP67/IP69K protection options, providing resistance against dust, water exposure and high-pressure washdown environments.
The appropriate protection rating depends on the specific application requirements, cleaning methods and operating conditions.
Q5: How do I select the right stainless steel bevel gearbox model?
Selecting the right stainless steel bevel gearbox depends on torque requirements, operating speed, gear ratio, installation space and environmental conditions.
SIJIE offers three standard gearbox sizes:
- SSJV090 – Compact solution for space-limited applications and hygienic automation equipment.
- SSJV110 – Balanced performance for medium-duty industrial applications requiring reliable continuous operation.
- SSJV140 – Heavy-duty solution for higher torque requirements and demanding production environments.
Our engineering team can assist with gearbox selection based on your equipment specifications and application requirements.
Q6: Can SIJIE provides OEM stainless steel bevel gearbox solutions?
Yes. SIJIE provides OEM stainless steel bevel gearbox solutions including custom gear ratios, mounting configurations, shaft designs and motor interface options.
Our engineering team works with customers to develop reliable gearbox solutions for specific machinery requirements, production environments and application conditions.
Downloads
For the complete range of brochures, datasheets, videos and more go to the Downloads page
