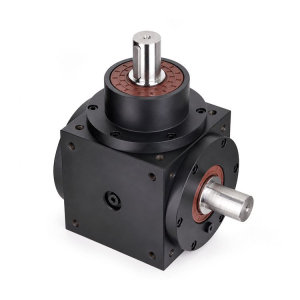

SJV-Series Bevel Gearbox
Key Features

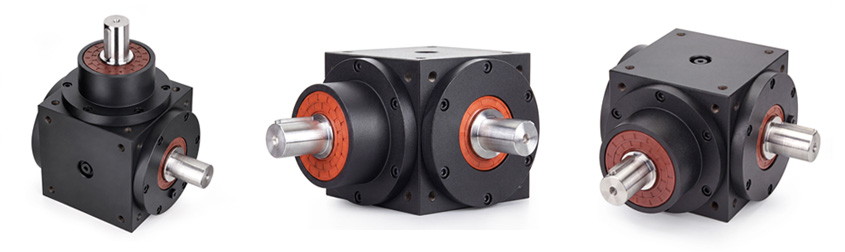

Our SJV series cast iron bevel gearboxes are equipped with high-precision tapered thrust bearings for quiet operation and excellent radial load capacity. Double-lip, UV-protected oil seals ensure reliable environmental protection and zero leakage during running. The spiral bevel gears are heat-treated and precision-lapped for maximum strength, smooth rotation, and efficient tooth contact.
Gear ratios: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1 (custom ratios available on request)
Drive shaft options: 1 way, 2 way, 3 way, 4 way
Max. Permissible Speed: 2000rpm
Max Permissible Power: 94.2KW
Working temperature: -40ºC ~ +50ºC (custom special temperature range available)
Function: 90° angle transmission direction change
• Low Backlash: Hardened and lapped matched-set gearing provides smooth, reliable, and predictable rotary motion.
• Flexible Mounting: This cubic right-angle gearbox features a machined housing and pre-tapped holes, enabling mounting on all six sides.
• Special Designs: Standard models can be modified for maximum design versatility; full OEM/ODM dimension customization is available.
Downloads
For the complete range of brochures, datasheets, videos and more go to the Downloads page
Brochures
SJV Bevel gearbox
PDF >
Specifications & ordering information
SJV Bevel Gearbox Specifications
| Model | Input Speed (RPM) | Gear Ratio 1:1 | Gear Ratio 2:1 | Gear Ratio 3:1 | Gear Ratio 4:1 | Gear Ratio 5:1 | |||||
| Power | Torque | Power | Torque | Power | Torque | Power | Torque | Power | Torque | ||
| ( KW ) | ( N.m ) | ( KW ) | ( N.m ) | ( KW ) | ( N.m ) | ( KW ) | ( N.m ) | ( KW ) | ( N.m ) | ||
| SJV-090 | 2000 | 7.55 | 33.6 | 4.2 | 38.57 | 2.85 | 40.39 | 2.15 | 39.76 | 1.4 | 34.56 |
| 1500 | 6 | 38.2 | 3.35 | 42.66 | 2.2 | 42.02 | 1.65 | 42.02 | 1.1 | 35.02 | |
| 1000 | 4.3 | 41.07 | 2.35 | 44.89 | 1.5 | 43.02 | 1.15 | 43.93 | 0.75 | 35.81 | |
| 750 | 3.4 | 43.29 | 1.8 | 45.84 | 1.2 | 45.84 | 0.87 | 44.19 | 0.58 | 36.93 | |
| SJV-110 | 2000 | 13.8 | 63 | 7.9 | 72 | 5.6 | 80 | 3.75 | 70.1 | 2.95 | 71.3 |
| 1500 | 11 | 70 | 6.3 | 80.2 | 4.45 | 85 | 2.9 | 73.9 | 2.35 | 74.8 | |
| 1000 | 7.87 | 75 | 4.45 | 85 | 3.1 | 88.8 | 2 | 76.4 | 1.6 | 76.4 | |
| 750 | 6.15 | 78.3 | 3.45 | 87.9 | 2.4 | 91.7 | 1.55 | 78.9 | 1.25 | 79.6 | |
| SJV140 | 2000 | 29.9 | 128.6 | 14.1 | 133.3 | 10.1 | 136.8 | 6.8 | 125.3 | 5.05 | 115.2 |
| 1500 | 23.9 | 152.2 | 11.1 | 141.3 | 7.95 | 151.8 | 5.3 | 135 | 3.95 | 125.7 | |
| 1000 | 17.2 | 164.3 | 7.85 | 149.9 | 5.6 | 160.4 | 3.75 | 143.3 | 2.75 | 131.3 | |
| 750 | 13.4 | 170.6 | 6.2 | 157.9 | 4.4 | 168.1 | 2.95 | 150.3 | 2.1 | 133.7 | |
| SJV-170 | 2000 | 49.2 | 180.1 | 26.2 | 224.7 | 18.2 | 235.2 | 10.5 | 179.5 | 8.05 | 170.9 |
| 1500 | 39.3 | 250.2 | 20.8 | 264.9 | 14.4 | 275 | 8.4 | 213.9 | 6.45 | 205.3 | |
| 1000 | 28.8 | 275 | 14.9 | 284.6 | 10.1 | 289.4 | 5.9 | 225.4 | 4.5 | 214.9 | |
| 750 | 22.8 | 290.3 | 11.6 | 295.4 | 7.8 | 298 | 4.55 | 231.7 | 3.45 | 219.7 | |
| SJV-210 | 2000 | 84 | 336.7 | 52.4 | 480.2 | 34.9 | 428.3 | 23.3 | 417.6 | 15.9 | 350.2 |
| 1500 | 67.5 | 429.8 | 43.2 | 550.1 | 27.7 | 529.1 | 18.5 | 471.1 | 12.7 | 404.3 | |
| 1000 | 50.5 | 482.3 | 31.4 | 599.7 | 20 | 573 | 13.4 | 511.9 | 9 | 429.8 | |
| 750 | 40.8 | 519.5 | 25.2 | 641.8 | 15.7 | 599.7 | 10.4 | 529.7 | 6.95 | 442.5 | |
| SJV-240 | 2000 | 111 | 475.8 | 71.5 | 643.7 | 52.4 | 695.2 | 37.7 | 652.3 | 28.9 | 643.8 |
| 1500 | 90.5 | 576.2 | 58.5 | 744.9 | 41.9 | 800.3 | 30.2 | 769.1 | 23.4 | 744.9 | |
| 1000 | 68 | 649.4 | 41.9 | 800.3 | 30.2 | 865.2 | 21.7 | 828.9 | 16.4 | 783.1 | |
| 750 | 54.5 | 694 | 33.8 | 860.8 | 23.6 | 901.5 | 17.1 | 871 | 13 | 827.7 | |
| SJV-280 | 2000 | 168 | 837.5 | 107 | 961.4 | 73 | 957 | 47.6 | 870.4 | 39.4 | 890.5 |
| 1500 | 156 | 993.2 | 88 | 1121 | 58.5 | 1117 | 38.5 | 980.5 | 31.4 | 999.6 | |
| 1000 | 115 | 1098 | 64.5 | 1232 | 42.4 | 1215 | 27.5 | 1051 | 22.4 | 1070 | |
| 750 | 94.2 | 1199 | 51 | 1299 | 33.5 | 1280 | 21.7 | 1105 | 17.7 | 1127 | |
SJV Series Spiral Bevel Gearbox Ordering Information:
SJV090 – 1:1 – 1500R – 1500R – M1/I-LR – A
1 2 3 4 5 6
SJV Series Bevel Gearbox Ordering Information:
SJV090 – 1:1 – 1500R – 1500R – M1/I-LR – A
1 2 3 4 5 6
1: Gearbox Model
Gearbox model( SJV090, SJV110, SJV140, SJV170, SJV210, SJV240, SJV280)
Before selecting SJV gearbox model, please check above SJV Series Bevel Gearbox Specifications.
2: Gear Ratios
Gear ratios such as 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
3 & 4: Input & Output RPM
| Input speed | 2000rpm | 1500rpm | 1000rpm | 750rpm | 500rpm | 250rpm | 50rpm |
| Gear Ratio | 1:1 | ||||||
| Output speed | 2000rpm | 1500rpm | 1000rpm | 750rpm | 500rpm | 250rpm | 50rpm |
| Gear Ratio | 1.5:1 | ||||||
| Output speed | 1333rpm | 1000rpm | 667rpm | 500rpm | 333rpm | 167rpm | 33rpm |
| Gear Ratio | 2:1 | ||||||
| Output speed | 1000rpm | 750rpm | 500rpm | 375rpm | 250rpm | 125rpm | 25rpm |
| Gear Ratio | 3:1 | ||||||
| Output speed | 667rpm | 500rpm | 333rpm | 250rpm | 167rpm | 83rpm | 17rpm |
| Gear Ratio | 4:1 | ||||||
| Output speed | 500rpm | 375rpm | 250rpm | 187rpm | 125rpm | 62.5rpm | 12.5rpm |
| Gear Ratio | 5:1 | ||||||
| Output speed | 400rpm | 300rpm | 200rpm | 150rpm | 100rpm | 50rpm | 10rpm |

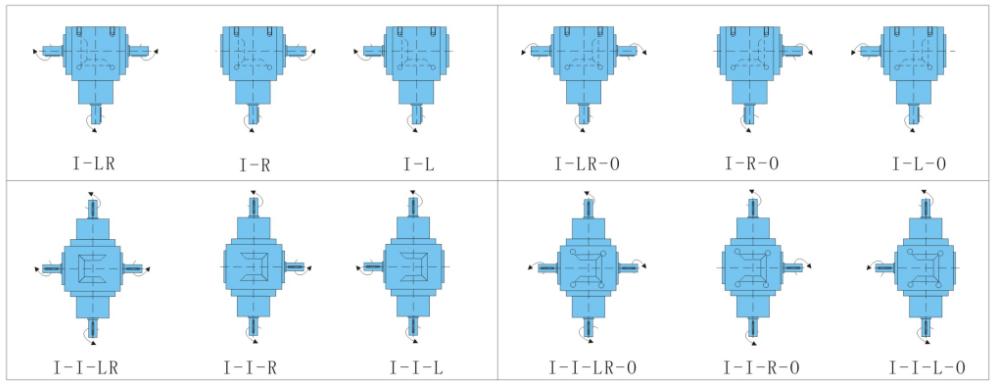

5: Rotate directions

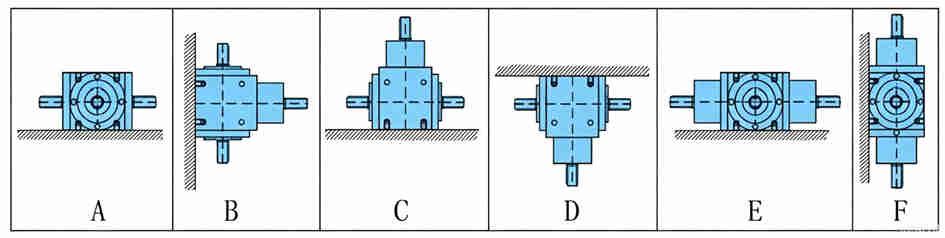

6: Installation
Frequently Asked Questions( FAQ)
Waht is the bevel gearbox?
Our SJV series cast iron bevel gearboxes are equipped with high-precision tapered thrust bearings for quiet operation and excellent radial load capacity.
